Z40 Z80 Z100 Galvanized Steel Coil ASTM Dx51d Ppgi Colour Coated Sheet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ASTM Dx51d Hot DIP Galvanized Carbon Steel Coil Z40 Z80 Z100 Z120 Z180 | Width | Above 50mm-1010mm (tolerance -0/+3 Mm) |
|---|---|---|---|
| Thickness | 0.12-6.00mm,or Customer's Requirement | Type Of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 | Surface Structure | Normal Spangle Coating(NS), Minimized Spangle Coating(MS), Spangle-free(FS) |
| Package | Water Proof Paper Is Inner Packing,galvanized Steel Or Coated Steel Sheet Is Outer Packing , Side Guard Plate,then Wrapped By Seven Steel Belt.or According To Customer's Requirement | Export Market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, Etc |
| Highlight | z100 galvanized steel coil,galvanized steel coil astm,z40 spcc steel coil |
||
Product Description

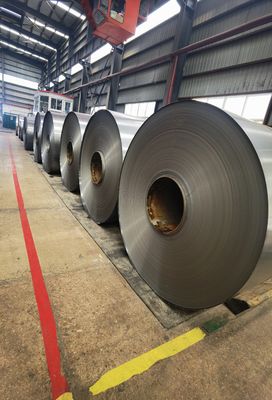

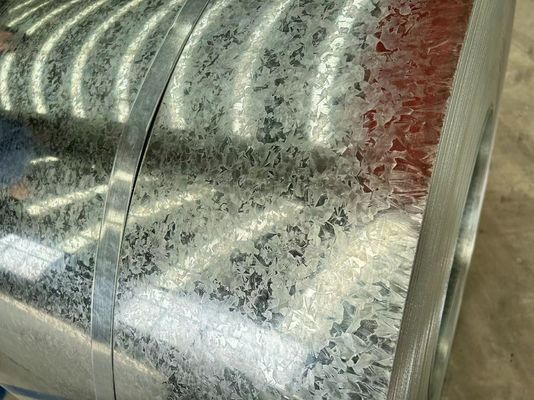

Z40 Z80 Z100 Galvanized Steel Coil ASTM Dx51d Ppgi Colour Coated Sheet
Product Specifications
| Attribute | Value |
|---|---|
| Product Name: | ASTM Dx51d Hot DIP Galvanized Carbon Steel Coil Z40 Z80 Z100 Z120 Z180 |
| Width: | Above 50mm-1010mm (tolerance -0/+3 Mm) |
| Thickness: | 0.12-6.00mm, or customer's requirement |
| Type of Coating: | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating: | 30-275g/m2 |
| Surface Structure: | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Package: | Water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt, or according to customer's requirement |
| Export market: | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
Product Description
Galvanized coil, a thin steel sheet that is dipped into the molten zinc bath to make its surface adhere to a layer of zinc. At present, it is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the bath with melted zinc to make galvanized steel plate; Alloyed galvanized steel sheet. This kind of steel plate is also made by hot dip method, but it is heated to about 500 ℃ immediately after being out of the tank, so that it can form an alloy coating of zinc and iron. This galvanized coil has good coating tightness and weldability. Cold Rolled Carbon Steel Coil can be divided into hot-rolled galvanized coils and cold-rolled hot-rolled galvanized coils, which are mainly used in construction, household appliances, automobiles, containers, transportation and household industries.
In particular, steel structure construction, automobile manufacturing, steel warehouse manufacturing and other industries. The demand of construction industry and light industry is the main market of galvanized coil, which accounts for about 30% of the demand of galvanized sheet.
| Product name | Galvanized steel Coil |
| Galvanized steel Coil | ASTM, EN, JIS, GB |
| Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340, SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
| Thickness | 0.10-2mm can customized accordingly your requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Technical | Hot Dipped Galvanized coil |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation, Oiling, Lacquer sealing, Phosphating, Untreated |
| Surface | regular spangle, misi spangle, bright |
| Coil Weight | 2-15metric ton per coil |
| Package | Water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt, or according to customer's requirement |
| Application | structure construction, steel grating, tools |
