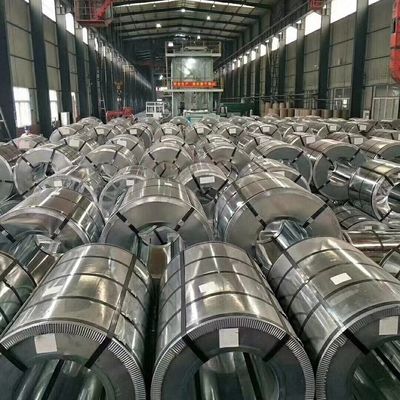

Oiled Surface Ppgi Steel Sheet 1010mm GI Galvanized Steel Sheet Coil S550GD
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Oiled Surface GI Steel Coil For Corrosion Resistance | Trademark | DC51D+Z, DC52D+Z,DC53D+Z,DC54D+Z,S220GD+Z,S250GD+Z,S80GD+Z,S320GD+Z,S350GD+Z,S400GD+Z,S500GD+Z,S550GD+Z |
|---|---|---|---|
| Width | Above 50mm-1010mm (tolerance -0/+3 Mm) | Thickness | 0.12-6.00mm,or Customer's Requirement |
| Type Of Coating | Hot Dipped Galvanized Steel(HDGI) | Zinc Coating | 30-275g/m2 |
| Surface Structure | Normal Spangle Coating(NS), Minimized Spangle Coating(MS), Spangle-free(FS) | Package | Water Proof Paper Is Inner Packing,galvanized Steel Or Coated Steel Sheet Is Outer Packing , Side Guard Plate,then Wrapped By Seven Steel Belt.or According To Customer's Requirement |
| Export Market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, Etc | ||
| Highlight | ppgi steel sheet 1010mm,gi galvanized steel sheet coil,galvanized steel sheet coil s550gd |
||
Product Description
Oiled Surface GI Steel Coil for Corrosion Resistance
Product Specifications
| Attribute | Value |
|---|---|
| Trademark | DC51D+Z, DC52D+Z, DC53D+Z, DC54D+Z, S220GD+Z, S250GD+Z, S80GD+Z, S320GD+Z, S350GD+Z, S400GD+Z, S500GD+Z, S550GD+Z |
| Width | Above 50mm-1010mm (tolerance -0/+3 Mm) |
| Thickness | 0.12-6.00mm, or customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel (HDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Structure | Normal spangle coating (NS), minimized spangle coating (MS), spangle-free (FS) |
| Package | Water proof paper inner packing, galvanized steel or coated steel sheet outer packing, side guard plate, wrapped by seven steel belt, or according to customer's requirement |
| Export Market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America |
Product Description
Galvanized steel coil uses steel coil as the base material coated with a protective zinc layer through hot-dip galvanizing or electroplating processes. This zinc coating provides excellent corrosion resistance for the steel substrate.
Key Advantages
For Home Appliance Decoration:
- Aesthetics: Bright metallic finish enhances appearance quality, can be embossed or printed for decorative patterns
- Corrosion Resistance: Zinc layer acts as sacrificial anode, protecting steel from moisture and environmental exposure
- Processing Performance: Easy to cut, bend and form for custom appliance manufacturing
For Civil Industry Applications:
- Construction: Ideal material for roofs and walls in civil buildings
- Machinery Manufacturing: Provides durable protection for machinery housings and enclosures
Technical Specifications
| Parameter | Details |
|---|---|
| Standards | ASTM, EN, JIS, GB |
| Grades | Dx51D, Dx52D, Dx53D, DX54D, S220GD-S550GD; SGCC-SGCD3; SQ CR22-SQ CR80; or custom requirements |
| Thickness Range | 0.10-2mm (customizable) |
| Width Range | 600mm-1500mm (customizable) |
| Surface Treatments | Passivation, Oiling, Lacquer sealing, Phosphating, Untreated |

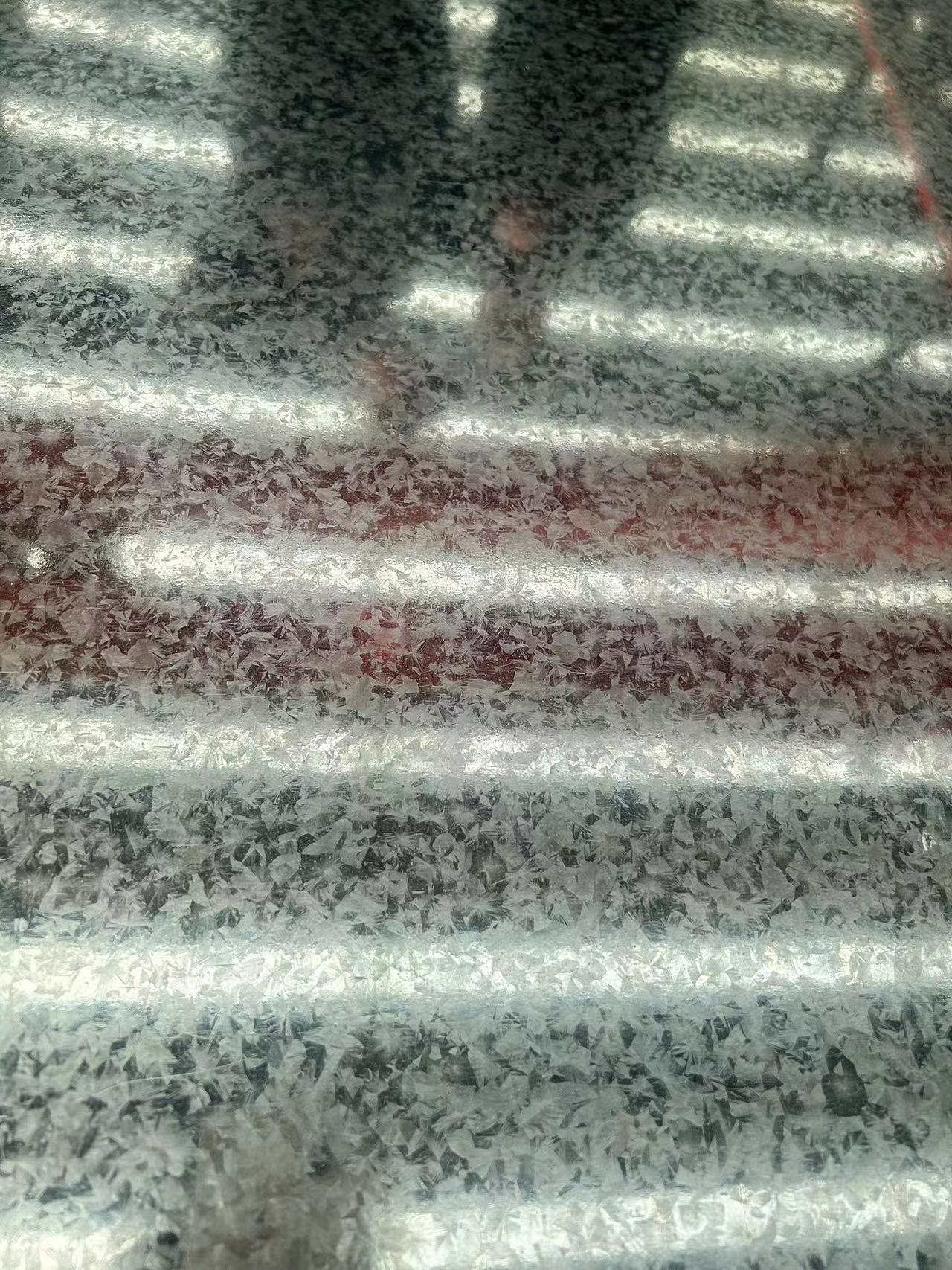

| Surface Options | Regular spangle, minimized spangle, bright |
| Coil Weight | 2-15 metric tons per coil |
| Applications | Structural construction, steel grating, tools |
Frequently Asked Questions
What kind of work does your company do?
We are a professional manufacturer specializing in stainless steel plate/pipe/coil/round bars, as well as aluminum plate/pipe/coil products.
What are the advantages of your company?
- Prime quality products at competitive prices
- Extensive experience with excellent after-sale service
- Strict quality control at every production stage
- Professional packing teams ensuring safe transportation
- Fast turnaround for trial orders (within one week)
- Custom samples available upon request
What is your terms of payment?
Payment ≤ $1000 USD: 100% in advance. Payment ≥ $1000 USD: 30% T/T in advance, balance based on BL copy or LC at sight.
How competitive are your prices?
As a factory-direct manufacturer, we offer highly competitive pricing. Contact us for specific quotations.
What is your delivery time?
Delivery times vary by product, typically within 5 days after deposit receipt while maintaining quality standards.
