430 Stainless Steel Coil For Tableware / Cookware Inox
Product Details
| Product Name: | 430 Stainless Steel Coil For Tableware / Cookware Inox | Standard: | JIS, ASTM, AS, EN, GB |
|---|---|---|---|
| Grade: | 201, 202, 301, 302, 304, 309, 310, 316, 321, 2205, 347, 408, 409, 410, 416, 420, 430, 440, Etc | Category: | Austenitic, Ferritic, Martensitic, Duplex, Cold Rolled, Hot Rolled |
| Surface Treatment: | Brushed, Mirrored, Sandblasted, Embossed, Titanium-plated, Etc. | Packaging Method: | Waterproof Paper Fumigated Wooden Pallet Wooden Box, Etc |
| Surface: | N0.1, N0.2, N0.3, N0.4, N0.5, N0.6, N0.7, N0.8, 2D, 2B, HL, BA, 6K, 8K, Etc | ||
| Highlight |
430 stainless steel coil for cookware,inox stainless steel coil for tableware,stainless steel coil with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Standard | JIS, ASTM, AS, EN, GB |
| Grade | 201, 202, 301, 302, 304, 309, 310, 316, 321, 2205, 347, 408, 409, 410, 416, 420, 430, 440, etc |
| Category | Austenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled |
| Surface Treatment | Brushed, Mirrored, Sandblasted, Embossed, Titanium-plated, etc. |
| Packaging Method | Waterproof paper, Fumigated wooden pallet, Wooden box, etc |
| Surface | N0.1, N0.2, N0.3, N0.4, N0.5, N0.6, N0.7, N0.8, 2D, 2B, HL, BA, 6K, 8K, etc |
Grade:
12X17/430/1.4016
Description:
430 is one of the most widely used of the "non-hardenable" ferritic stainless steels. With nominal 16% chromium it combines good corrosion resistance and heat and oxidation resistance up to 1500 °F (816 °C) with good mechanical properties. Type 430 is a non-stabilized stainless steel and as such is not suitable for all welded applications.
Application:
automotive trim and molding/ furnace combustion chambers/ dishwashers/ range hoods/ gas burners on heating units/ gutters and downspouts and flatware.
Corrosion Resistanc:
430 has excellent corrosion resistance, including high resistance to nitric acid as well as to sulfur gases and many organic and food acids. This alloy does not provide the resistance to pitting by dilute reducing acids that is provided by the chromium-nickel stainless steels. Because of its relatively high chromium content, the material provides good resistance to oxidation. Its maximum scaling temperature is 1500 °F (816 °C) for continuous service.
Formability:
Type 430 stainless steel is easily drawn and formed. Its drawing characteristics are similar to those of low-carbon steel, but it is stronger in the annealed condition. Therefore, it requires stronger tooling and increased power. Additionally, it is adaptable to most hot-forming operations.
Weldability:
This ferritic class of stainless steels is generally considered to be weldable by common fusion and resistance techniques. Special consideration is required to avoid brittle weld fractures during fabrication by minimizing discontinuities, controlling weld heat input, and occasionally warming the part somewhat before forming. This particular alloy is generally considered to have slightly poorer weldability than the most common alloy of the stainless class, Type 409, but better than standard non-stabilized Type 410 with higher carbon. A major difference is the addition of aluminum to control hardening, which results in the need for higher heat input to achieve penetration during arc welding. When a weld filler is needed, American Welding Society (AWS) Classification ER/EC430, E430TX-X, ER/EC309L, or E309LT0-3 wires may be used
Chemical Properties:
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 430 |
min. max. |
- 0.12 |
- 1.00 |
- 1.00 |
- 0.040 |
- 0.030 |
16.0 18.0 |
- |
- 0.75 |
- |
Mechanical Properties:
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|---|---|---|---|---|---|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
| 430 | 450 | 205 | 22 | 89 | 183 |
Physical Properties:
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion |
Thermal Conductivity |
Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nW.m) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 430 | 7750 | 200 | 10.4 | 11.0 | 11.4 | 23.9 | 26.0 | 460 | 600 |

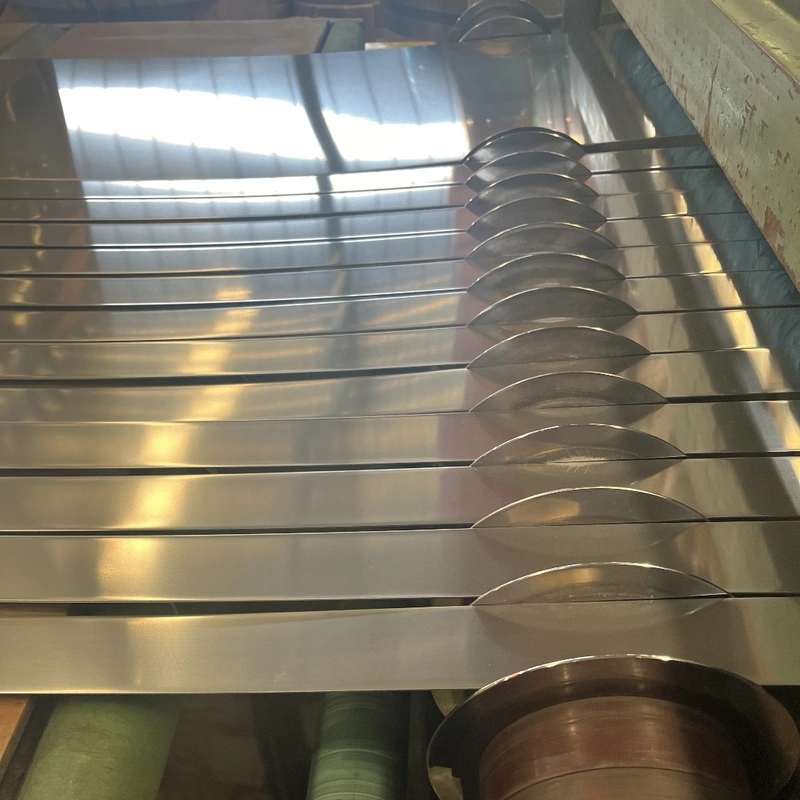

Our stainless steel coils are manufactured through two primary methods: hot rolling and cold rolling, with thickness ranging from 0.3-4mm. Cold rolled steel offers superior precision, smoother surfaces, and enhanced mechanical properties compared to hot rolled alternatives.
Cold-rolled steel undergoes annealing, pickling, and surface smoothing processes to ensure optimal quality before delivery to customers.
| Product Name | Stainless Steel Coil/Sheet/Plate/Strip; Inox Steel Coil/Sheet/Plate/Strip |
|---|---|
| Thickness | 0.1-3.0mm (coil); 3.0-50mm (plate) |
| Width | 100-2000mm |
