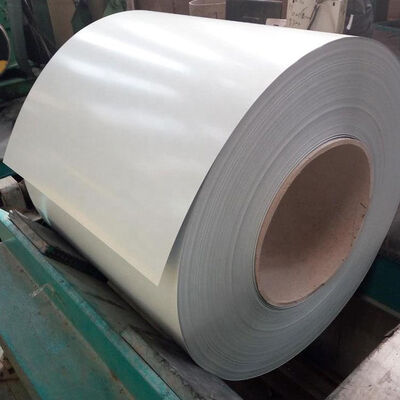

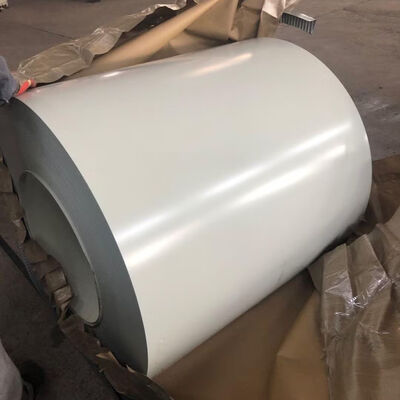

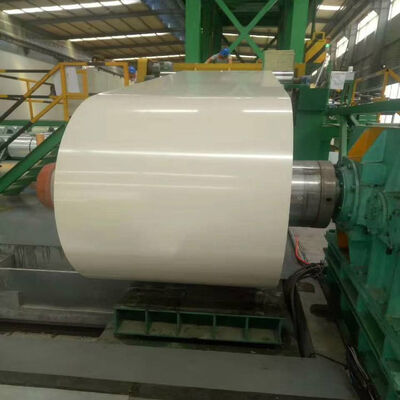

DX51D+Z Pre-Painted Galvanized Coil 600mm-1250mm Width with RAL Color Coating for Building and Construction
Product Details
| Products Name | DX51D+Z Pre-Painted Galvanized Coil | Width | 600mm-1250mm, 800~1250mm |
|---|---|---|---|
| Color | Red/Blue/Green/Black/White/Gray/Ral Color | Surface Treatment | Coated |
| Zinc Coating | Z80,Z100,Az100,Az120,Az150 | Processing Service | Welding,Punching,Cutting, Bending, Decoiling |
| Application | Building\Construction\Roofing\Corrugated | Surface Treatment | Coated |
| Packaging Details | Customized Packaging | ||
| Highlight | DX51D+Z pre-painted galvanized steel coil,PPGI PPGL coated metal coil,pre-painted galvanized coil with warranty |
||
Product Description
DX51D+Z Pre-Painted Galvanized Coil
DX51D+Z Pre-Painted Galvanized Coil is a high-quality color-coated steel product designed for various industrial and construction applications.
Product Specifications
| Attribute | Value |
|---|---|
| Products Name | RAL 9003 0.45 mm Ppgl Galvanized Steel Coil Color Coated Prepainted Ppgi For Building |
| Width | 600mm-1250mm, 800~1250mm |
| Color | Red/Blue/Green/Black/White/Gray/Ral Color |
| Surface Treatment | Coated |
| Zinc Coating | Z80,Z100,Az100,Az120,Az150 |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Building/Construction/Roofing/Corrugated |
| Packaging Details | Customized packaging |
Product Description
Color-coated coil is manufactured using hot-dip galvanized sheet, electro-galvanized sheet, or similar substrates. After surface pretreatment including chemical degreasing and conversion treatment, one or multiple layers of organic coatings are applied and baked to create a durable, finished product. These steel coils coated with various colored organic coatings are commonly referred to as color-coated coils.
PPGI (Pre-Painted Galvanized) refers to pre-painted galvanized steel products including PPGI Coil (color-coated galvanized coil) and PPGI Sheet (color-coated galvanized sheet). These products feature galvanized coils with additional color coatings that provide enhanced aesthetic appeal and expanded application versatility.
PPGL (Pre-Painted Galvalume) consists of galvalume coils covered with color coatings for additional protection and visual appeal.
Technical Specifications
| Product name | PPGI / PPGL color prepainted galvanized steel coils / strips |
|---|---|
| Material | SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 DX51D DX52D DX53D DX54D DX55D DX56D DX57D |
| Standard | AiSi, ASTM, BS, DIN, GB, JIS |
| Technique | Cold rolled |
| Thickness | 0.12 -- 1.5mm |
| Width | 600/650/750/830/914/1000/1200/1219/1220/1250mm |
| Basic Coil | Hot-dipped galvanized / Alu-zinc Coils |
| Top side | 5um + 13~20microns |
| Back side | 5~8microns / 5+10microns |
| Color | RAL numbers or customers samples color |
| Zinc coating | 20 -- 275G/M2 |
| Coil weight | 3 -- 8MT |
| Painting Type | PE, HDP, SMP, PVDF |
| Package | Properly packed for ocean freight: First: inside is kraft paper; Second: water plastic film is in the middle; Third: outside GI steel sheet to be covered by steel strips with lock. |
| Application | General service, home appliances, Industry, Decoration, Construction, Car, Appliance of daily life, Roof etc. |
