Epoxy coated Aluminium Coil

  • Epoxy coated Aluminium Coil
Place of Origin China
Brand Name Laiyuan
Certification MTC
Model Number Prepainted Aluminum Coil
Minimum Order Quantity 5T
Price USD3941-USD4525.55
Packaging Details Customized packaging
Delivery Time 10days
Payment Terms T/T, L/C, Western Union
Supply Ability 200t/week
Product Details
Products Name Beverage Can Aluminum 5182 3104 Width 100-2650
ID Ø508mm Or Customized Temper F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H111,H112,H114,etc.
Coating PVDF,PE,Food-Grade Epoxy Application Canning Materials, Oxidation Materials, Beer Filling, Cola Filling, Lamp Head Materials, Shutters, LCD Backplanes, Cake Trays, Aluminum Substrates For Color Coating, Etc.
Packaging Details Eye To Sky Or Eye To Wall
Highlight

epoxy coated aluminum coil

,

prepainted aluminum coil with warranty

,

durable epoxy aluminum coil
Leave a Message
Product Description

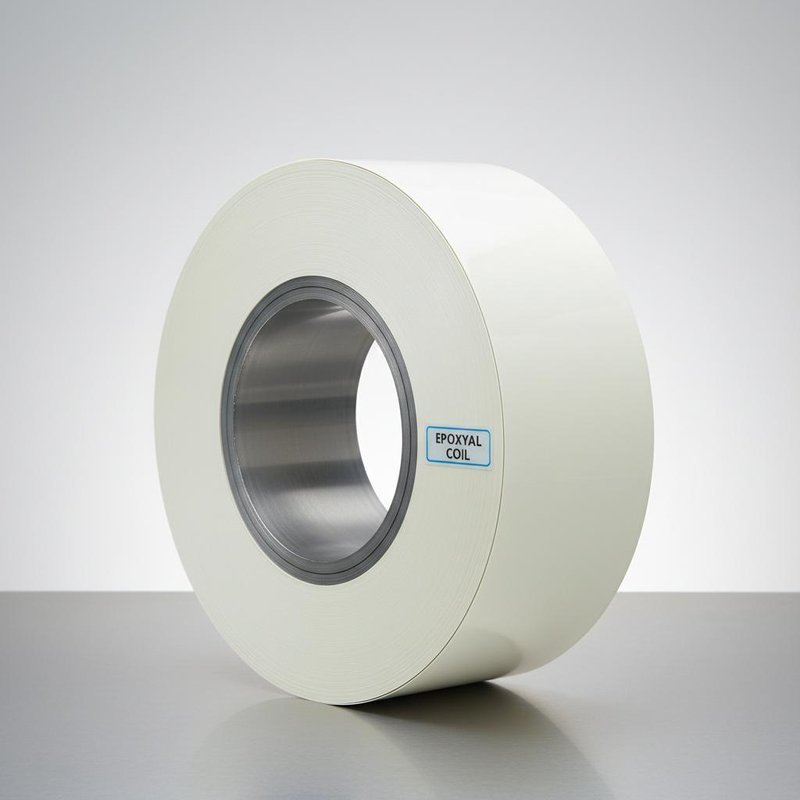

Epoxy coated Aluminium Coil

Epoxy Coated Aluminium Coil is an aluminum substrate uniformly coated with an epoxy resin layer through a precision coating process. This type of coil offers excellent corrosion resistance, chemical stability, and surface hardness, making it ideal for demanding industrial and architectural applications.
Alloy&Temper in common use:
3003, 3004, 3104, 3105, 5005, 5052 etc.


Product Description

Alloy&Temper in common use:

3003, 3004, 3104, 3105, 5005, 5052 etc.



Standard thickness:

0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, etc.,

Customized service is available.

Aluminium coils Width: 400mm, 500mm, 600mm, 1000mm;



Epoxy coating Aluminium Roofing features:

1. Interpenetrating mesh wear-resistant coating. After curing, an interpenetrating network polymer anti-corrosive coating between epoxy resin chain and rubber chain formed, which can effectively prevent the change of coating and improve the weather resistance of coating.

2. Good anti-corrosion performance. The coating also has strong adhesion, weather resistance, water resistance, durability and other properties;

3. Convenient construction, room temperature curing. The construction process is simple, not restricted by the site environment, only when used with the use can be, the use of general construction method, room temperature can be fixed.



ALLOY 3003/3004/3104/3105/5005/5052
TEMPER H24/H36/H44/H46
THICKNESS 0.25~4mm (0.9~1.2mm in common use), tolerance±3%
WIDTH 50~1600mm, ±0.2mm accuracy
Gloss of LITONG PVDF painted aluminium coil for Roofing 10~30%(EN ISO-2813:1994)
Gloss of LITONG FEVE painted aluminium coil for Roofing 30~90%(EN ISO-2813:1994)
The Maximum Width coils can be provided 2600mm, ±0.2mm accuracy
COATING TYPE PE(polyester); PVDF, Nano PVDF, FEVE; Epoxy
COATING THICKNESS

PE≧18mic.;

PVDF≧25mic(premier≧5mic),

Tolerance ±0.002mm

Epoxy: High-pressure airless spraying air spraying, dry film thickness of about 60μm, manual brush, dry film thickness of 55μm.
PAINT BRAND  PPG & Becker & other brand is available as well as requested
COATING COLOR CODES

RAL, NCS, Pantone etc as requested;

Wood grain, Marble pattern and other special colors can be provided as well as requested.







Epoxy coated Aluminium Coil 0

Technical Features & Process Advantages

  • Strong Adhesion: Excellent bonding between epoxy layer and aluminum base, suitable for further lamination or bonding processes.

  • Chemical & Corrosion Resistance: Protects against acids, alkalis, moisture, and industrial fumes.

  • High Mechanical Durability: Resistant to scratches, impact, and abrasion during handling or fabrication.

  • Heat Resistance: Maintains performance in elevated temperatures depending on resin formulation.

  • Smooth Surface Finish: Uniform and clean surface, available in white, gray, black, or custom colors.



What Problems It Solves

  • Prevents corrosion and oxidation in harsh or humid environments.

  • Enhances bonding performance in composite panels, such as aluminum-plastic or honeycomb panels.

  • Provides a non-reactive layer to isolate aluminum from reactive chemicals.

  • Reduces surface contamination, extending product shelf life and service life.

Frequently Asked Questions
What kind of work does your company do?
Our company is a professional manufacturer specializing in stainless steel plate/pipe/coil/round bars, as well as aluminum plate/pipe/coil products.
What are the advantages of your company?
  • Prime quality and reasonable price
  • Wide excellent experiences with after-sale service
  • Every process checked by responsible QC to ensure product quality
  • Professional packing teams to ensure safe transportation
  • Trial order completion within one week
  • Samples available upon request
What is your terms of payment?
Payment ≤ $1000 USD: 100% in advance. Payment ≥ $1000 USD: 30% T/T in advance, balance based on BL copy or LC at sight. For other questions, please contact us.
What about your price?
Our prices are highly competitive as we are a factory. Please contact us for specific pricing information.
How long is your delivery time?
Delivery times vary by product, with all orders processed as quickly as possible while maintaining quality standards. Typically, delivery occurs within 5 days after receiving your deposit.
How to guarantee the quality?
Every production procedure will be tested and evaluated. From the selection of raw materials to packaging for shipment. Only products that pass all tests will be delivered for export.
Can you provide free samples?
Yes, we can provide free sample for testing. Buyer should bear all the shipping costs.
Can we visit your factory if we go to China?
Warmly welcome to visit our factory, we will show you around.
The packaging and shipping of prepainted aluminum coils are crucial to ensure that the coils arrive at their destination in good condition and are ready for use.Proper packaging and shipping practices help maintain the quality of prepainted aluminum coils and ensure that they reach their destination in optimal condition.Standard export packaging, lined with moisture-proof paper, wrapped with waterproof membrane, to ensure that there is no damage during transportation.
Customized packaging can be provided according to customer needs.
